Place of Origin : China
Brand Name : SYMG
Certification : CE ISO
Packaging Details : Package suitable for long distance sea freight
Supply Ability : 1000 Set/Sets per Year
Price : Negotiable
Model Number : VMC1100
MOQ : 1 Set
Delivery Time : 30-45 days
Product name : VMC1100 vertical machining center
Worktable dimensions : 1300x610mm
T-slot sizes : 18x3mm
Max. load allowed : 1000kg
X/Y/Z-axis travel : 1100/610/650mm
Max. distance from spindle nose to worktable : 800mm
Min. distance from spindle nose to worktable : 150mm
Spindle speed : 8000r/min
Main motor power : 11/15kw
Tool quantity : 24pcs
vmc1100 cnc vertical machining center 4 axis cnc milling machine 5 axis cnc machinery wholesale supplier

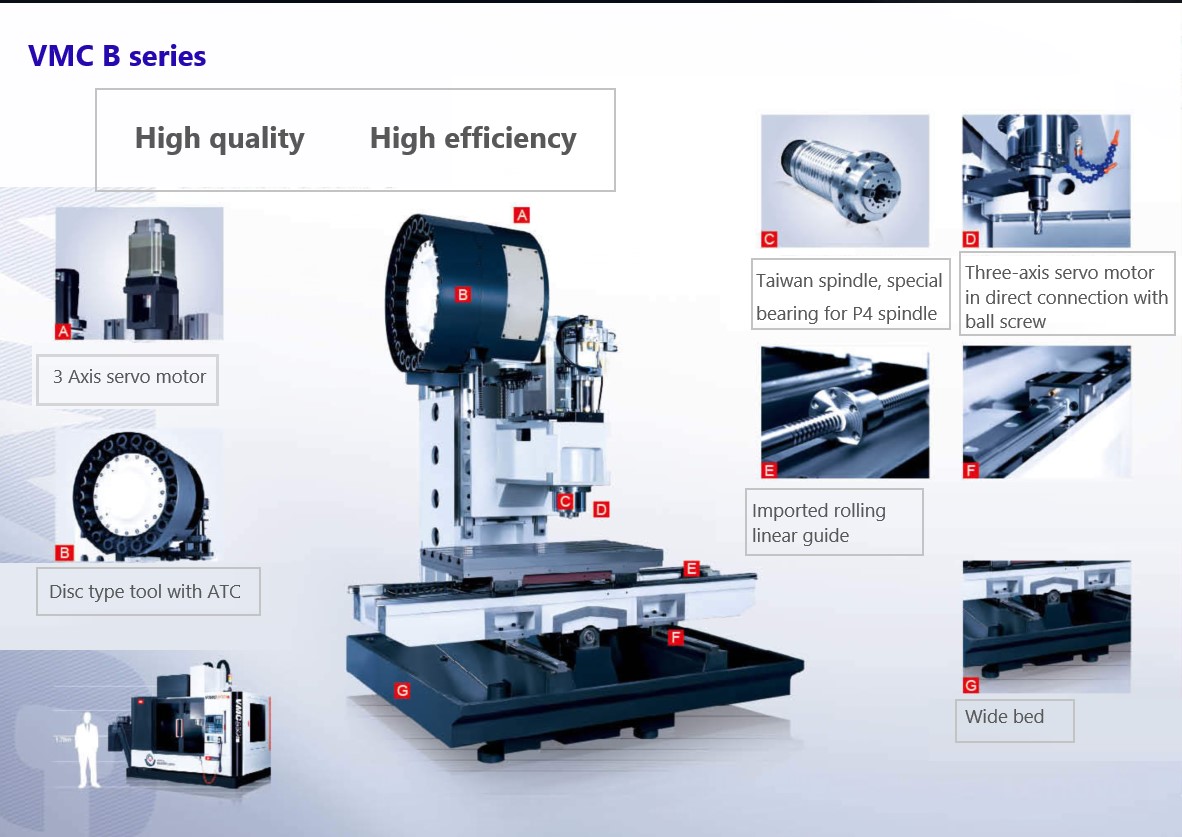

The B series is an optimal product developed in accordance with market demand. It not only has complete specifications, from table 800×420mm to 2200×800mm, and X-axis travel from 700mm to 2100mm; we are also rich in spindle configuration, from Standard belt connection, direct connection 8000 to output 380Nm high torque.
Model | Unit | VMC1000B | VMC1100B |
Worktable dimensions | mm | 1200x500 | 1300x610 |
T-slot sizes | mm | 18x5 | 18x3 |
Max. load allowed | kg | 600 | 1000 |
X-axis travel | mm | 1000 | 1100 |
Y-axis travel | mm | 610 | 610 |
Z-axis travel | mm | 650 | 650 |
Max. distance from spindle nose to worktable | mm | 800 | 800 |
Min. distance from spindle nose to worktable | mm | 150 | 150 |
Spindle taper shank | 7:24 BT40 | 7:24 BT40 | |
Spindle speed | r/min | 8000 | 8000 |
Main motor torque | Nm | 52.5 | 52.5 |
Main motor power | kW | 11/15 | 11/15 |
X/Y/Z axis rapid speed | m/min | 32/32/30 | 32/32/30 |
Feed speed | m/min | 20 | 20 |
Tool magazine form | Mechanical arm | Mechanical arm | |
Tool quantity | pcs | 24 | 24 |
Tool change time | s | 2.5 | 2.5 |
Positioning accuracy | mm | 0.016/0.012/0.012 | 0.016/0.012/0.012 |
Repeatability accuracy | mm | 0.010/0.008/0.008 | 0.010/0.008/0.008 |
General power capacity | KVA | 25 | 25 |
Air-supply pressure | Mpa | 0.5-0.7 | 0.5-0.7 |
Overall dimensions (LxWxH) | mm | 4400x2565x2944 | 4400x2565x2944 |
Machine weight | kg | 7000 | 8000 |
CNC controller | FANUC 0i-MF | FANUC 0i-MF |
Packaging & Shipping
FAQ
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype)
2.How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
3.What's your main products of your company?
We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
4.What's the Payment Terms ?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
5.Check the acceptance When receiving the goods, please check product carefully.
Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine.
If there is any problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
![]() |
